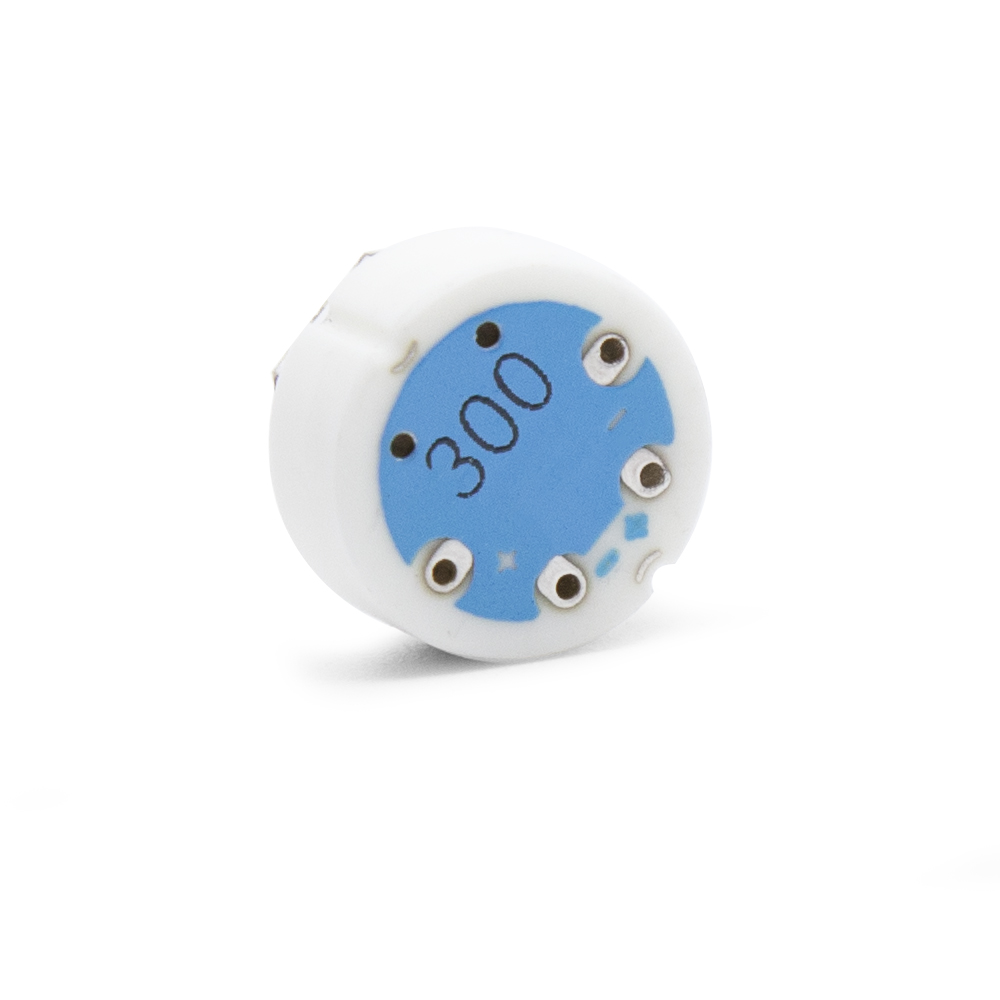

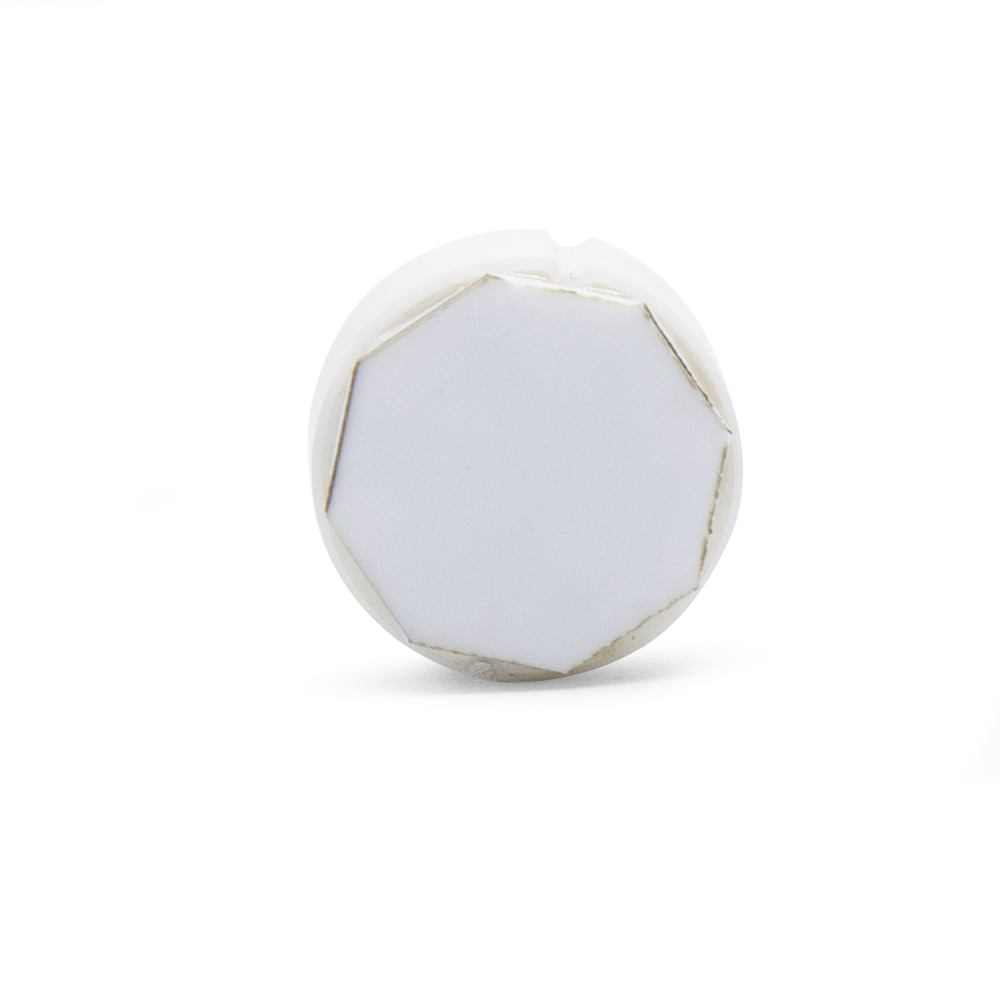

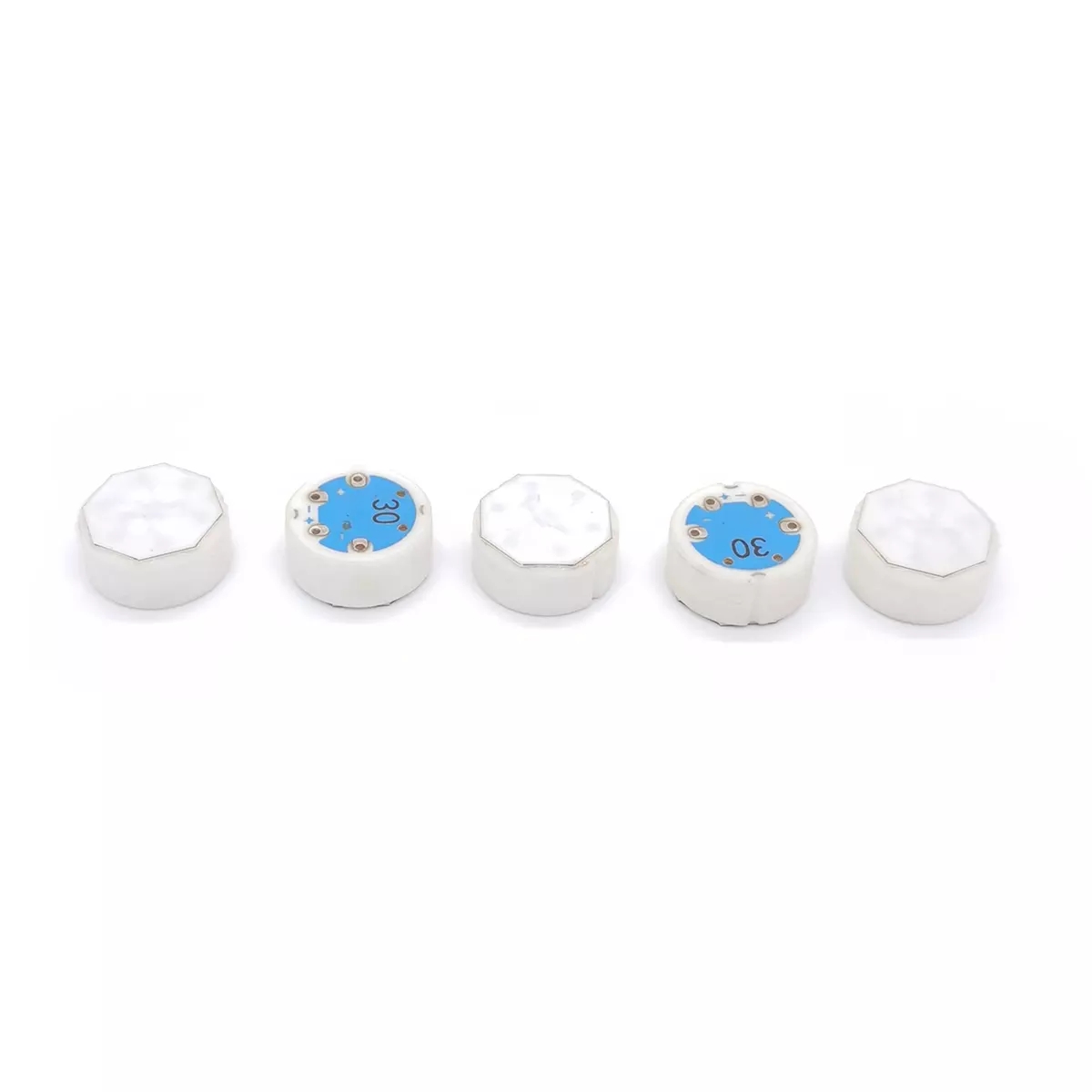

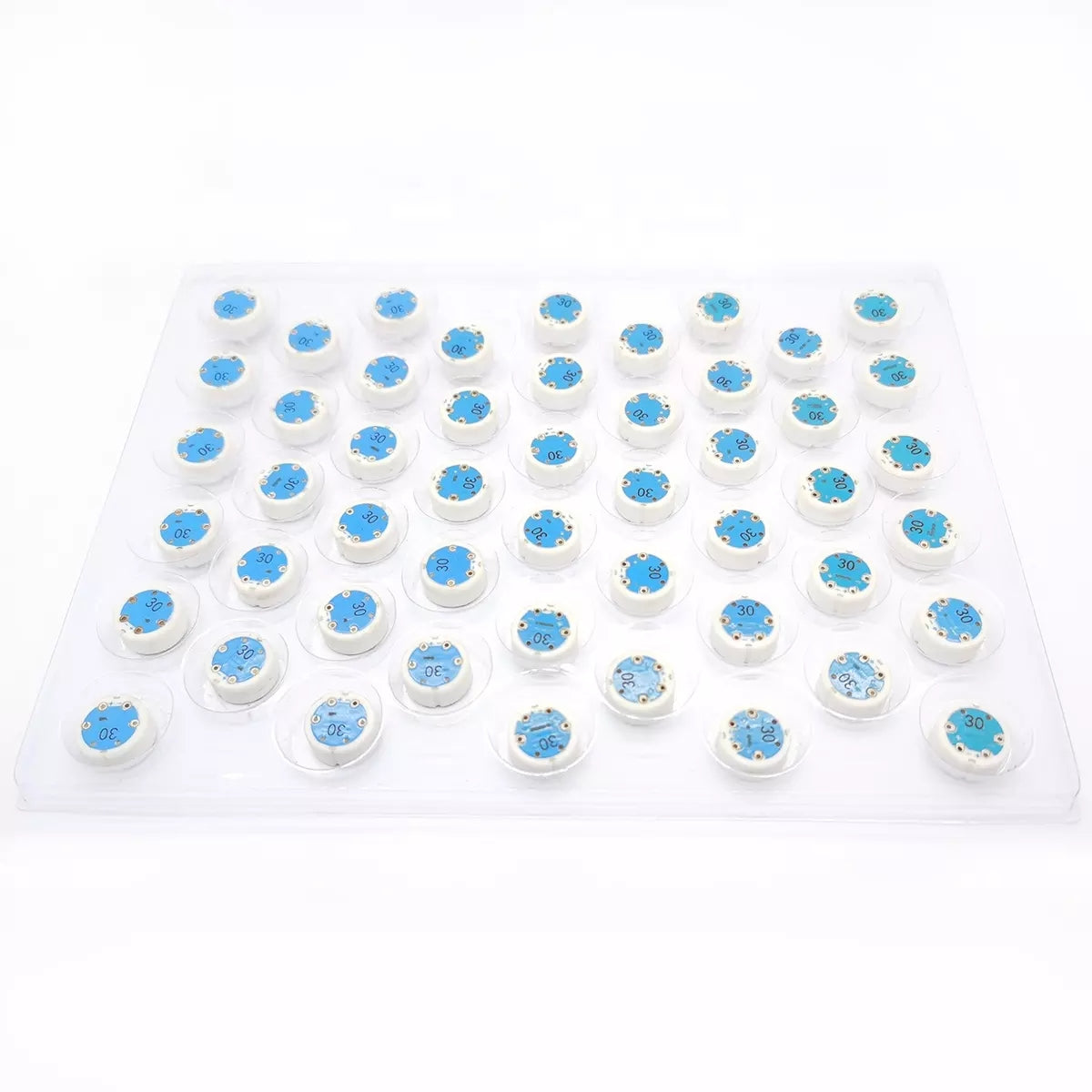

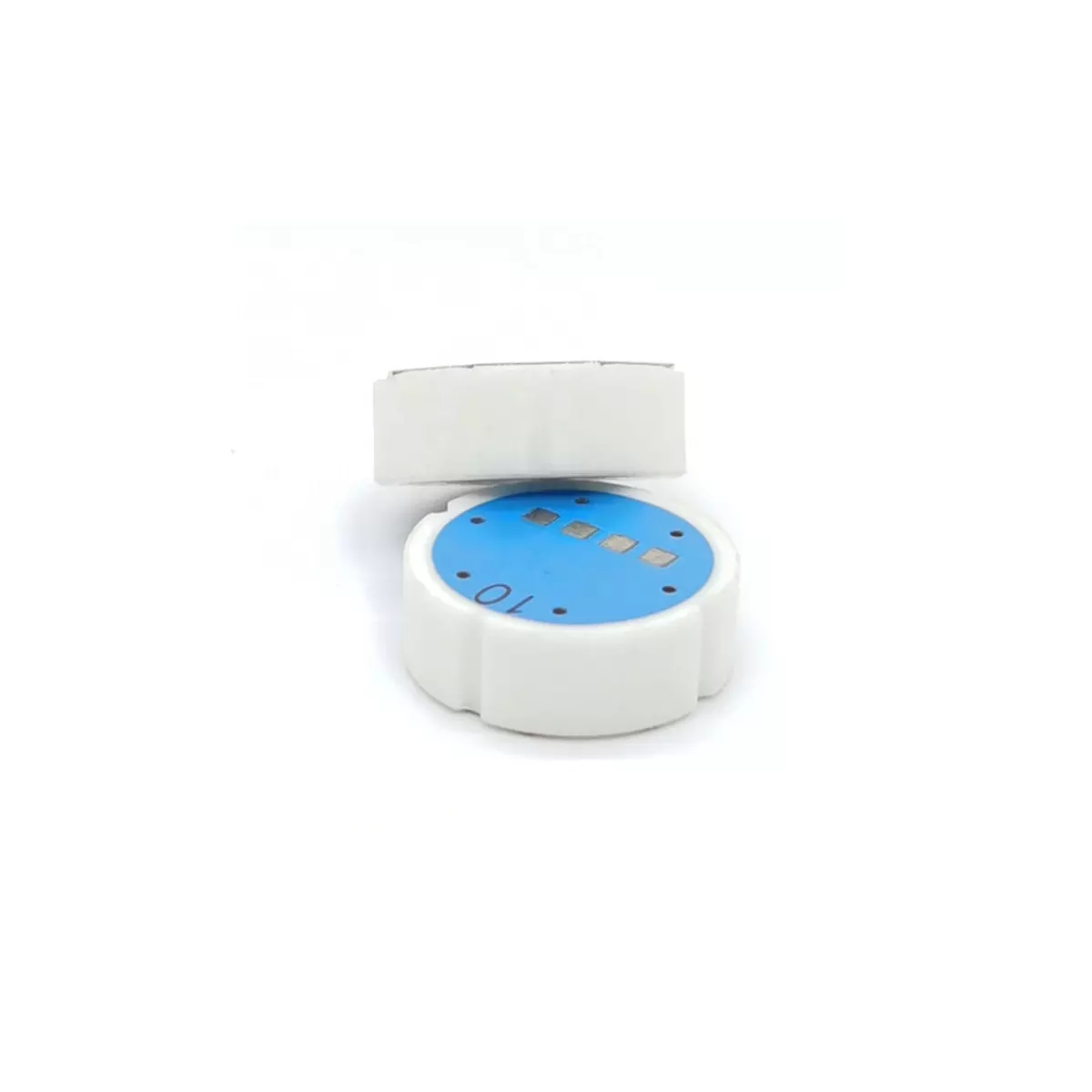

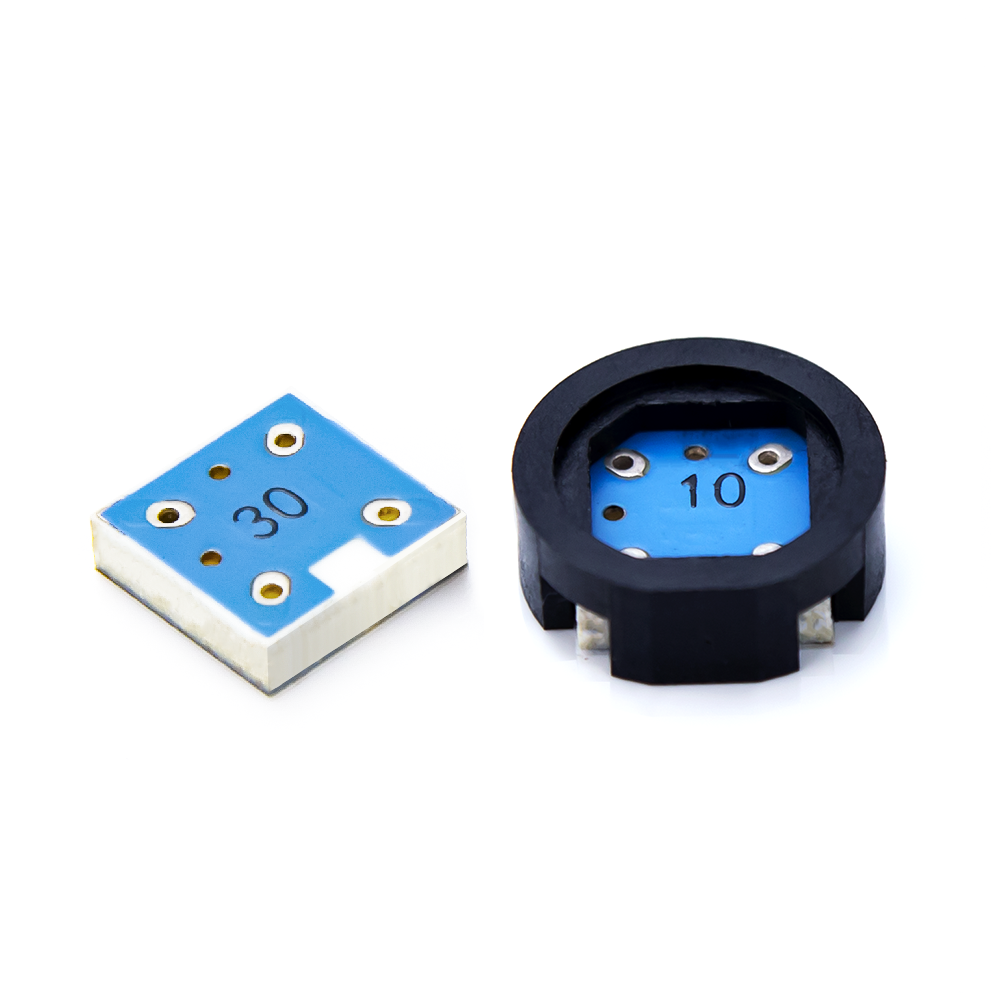

XDB101 Flush Diaphragm Piezoresistive Ceramic Pressure Sensor

Short Description:

YH18P and YH14P series flush diaphragm piezoresistive ceramic pressure sensors feature a 96% Al₂O₃ base and diaphragm. These sensors feature wide temperature compensation, high operating temperature range, and a robust structure for safety under extreme pressure, thus they can directly handle various acids and alkaline media without additional protection. As a result, they are ideal for industries with high safety requirements and can be easily integrated into standard transmission output modules.

Send email to us

Product Detail

Product Tags

Features

● Small size and easy packaging.

● Affordable price & economical solutions.

● Effective temperature compensation.

● Directly contact the measured medium, resistant to ordinary acids(except fluoric acid).

● Operating temperature range -40 to+135℃.

● High safety and wide application.

Typical Applications

● Automatic, water pump, diesel, engine, compressor, refrigerating machine, Jet Coder, air-condition, water heater eurostar.

● Valve, transmit, chemicals, petrochemical engineering, clinical gauge and many other field.

● XDB 101 Flush Diaphragm Piezoresistive Ceramic Pressure Sensor Designed for water pump and chemical fields.

industrial pressue measurement of gas liquids and steam

Waist up portrait of female medical worker in protective mask touching monitor of mechanical ventilator. Man lying in hospital bed on blurred background

Technical Parameters

Pressure range	0~500bar(optional)	Dimension	φ(18/13.5)×H
Product model	YH18P, YH14P	Supply voltage	0-30 VDC (max)
Bridge road impedance	10 KΩ±30%	Full range output	≥2 mV/V
Operating temperature	-40~+135℃	Storage temperature	-50~+150 ℃
Overall accuracy(linear + hysteresis)	≤±0.3% FS	Temperature drift(zero & sensitivity)	≤±0.03% FS/℃
Long-term stability	≤±0.2% FS/year	Repeatability	≤±0.2% FS
Zero offset	≤±0.2 mV/V	Insulation resistance	≥2 KV
Zero-point long-term stability @20°C	±0.25% FS	Relative humidity	0~99%
Direct contact with liquid materials	96% Al₂O₃	Net weight	≤7g(standard)
