Diffused Silicon Sensor Core

  • XDB102-6 Temperature & Pressure Dual Output Pressure Sensor

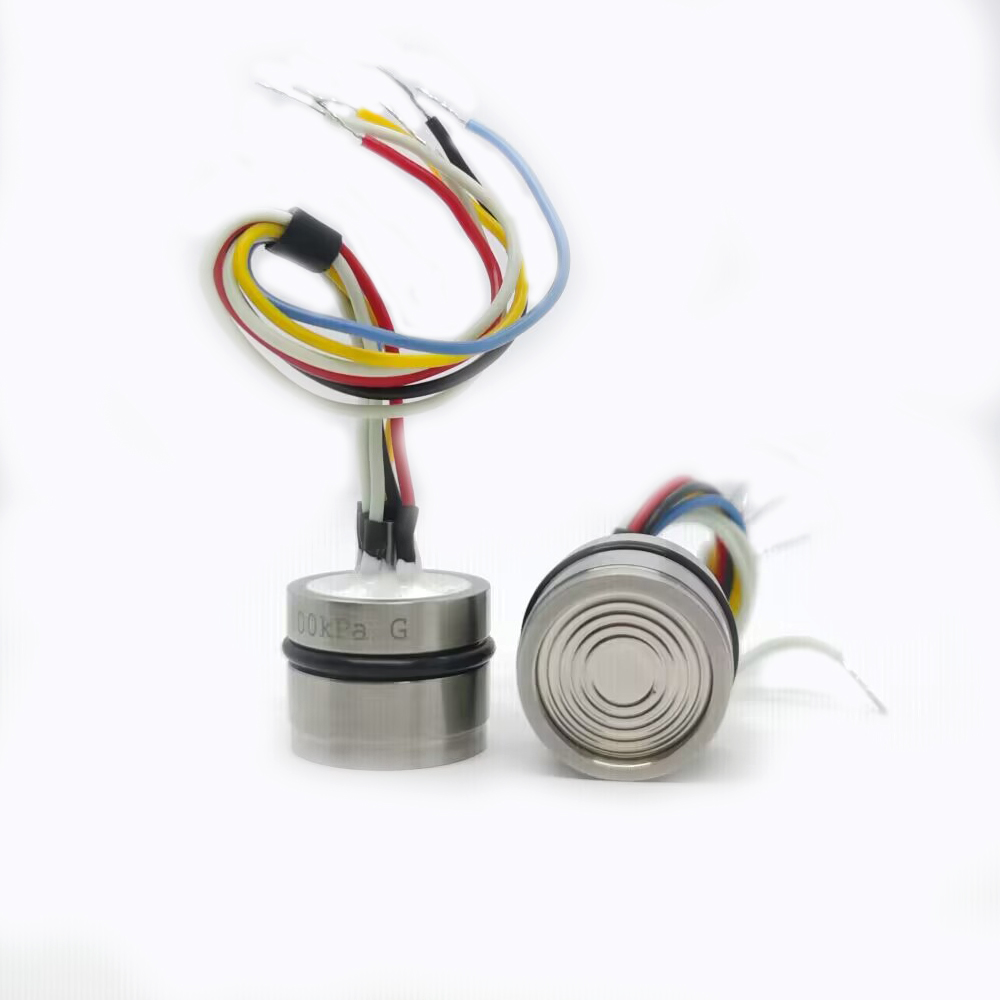

    XDB102-6 Temperature & Pressure Dual Output Pressure Sensor

    XDB102-6 series temperature & pressure dual output pressure sensor can measure the temperature and pressure critically at the same time. It has a very strong interchangeability, overall size is φ19mm ( universal ). XDB102-6 can be reliably applied to hydraulic systems, industrial process control and hydrological applications.

  • XDB102-1 Diffused Silicon Pressure Sensor

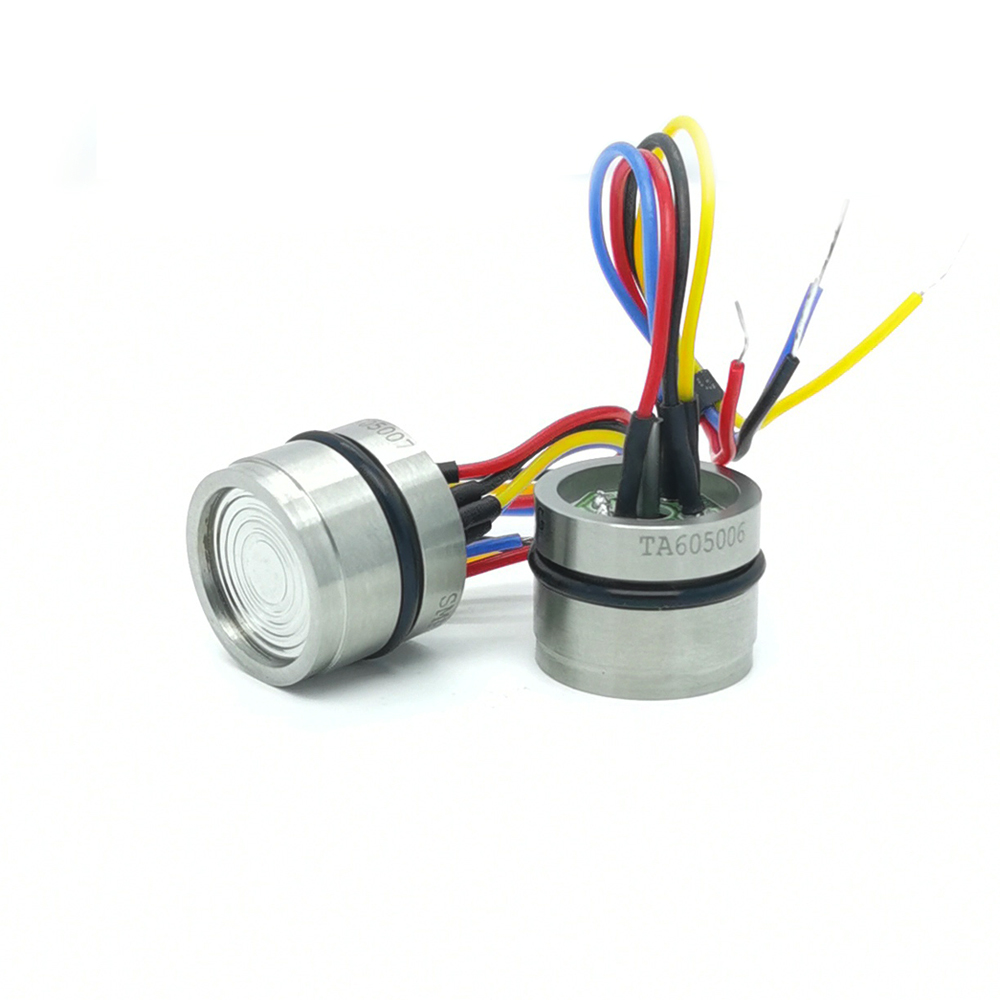

    XDB102-1 Diffused Silicon Pressure Sensor

    XDB102-1(A) series diffused silicon pressure sensor cores have the same shape, assembly size and sealing methods as the mainstream similar products abroad, and can be directly replaced. The production of each product has adopts strict aging, screening and testing processes to ensure excellent quality and high reliability.

  • XDB102-3 Diffused Silicon Pressure Sensor

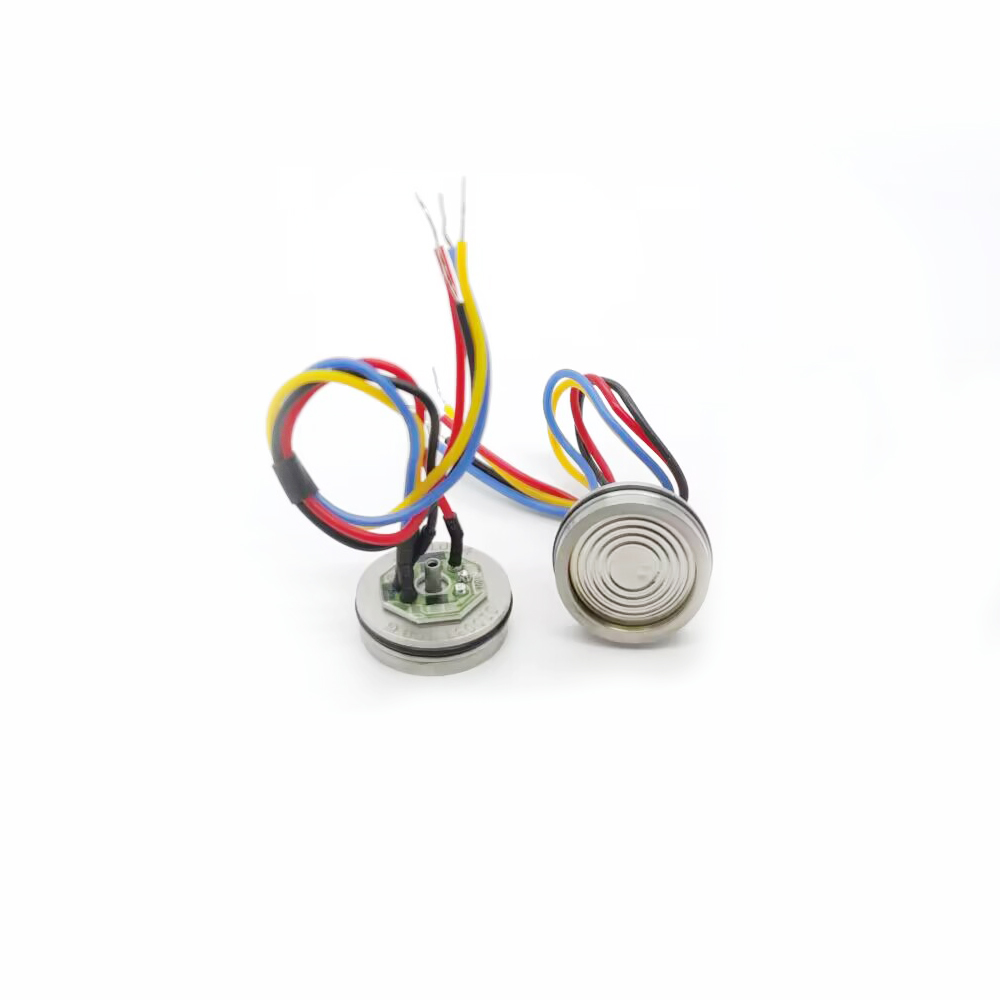

    XDB102-3 Diffused Silicon Pressure Sensor

    XDB102-3 series diffused silicon pressure sensor cores use high stability diffused silicon chip, the measured medium pressure can be transferred to silicon chips through the diaphragm and silicon oil transfer to the diffusion of silicon chips, the use of diffused silicon piezo-resistive effect principle to achieve the purpose of measuring the size of liquid, gas pressure.

  • XDB102-5 Piezoresistive Differential Pressure Sensor

    XDB102-5 Piezoresistive Differential Pressure Sensor

    XDB102-5 series Piezo-resistive differential pressure sensor cores use stainless steel material, there are also stainless steel corrugated diaphragm on both high and low pressure side to protect sensitive chip. The product’s shape and structure are the same with the similar products overseas, with good interchangeability, can be reliably applied to a variety of differential pressure measurements of the occasion.

  • XDB102-7 Piezoresistive Welded Pressure Sensor

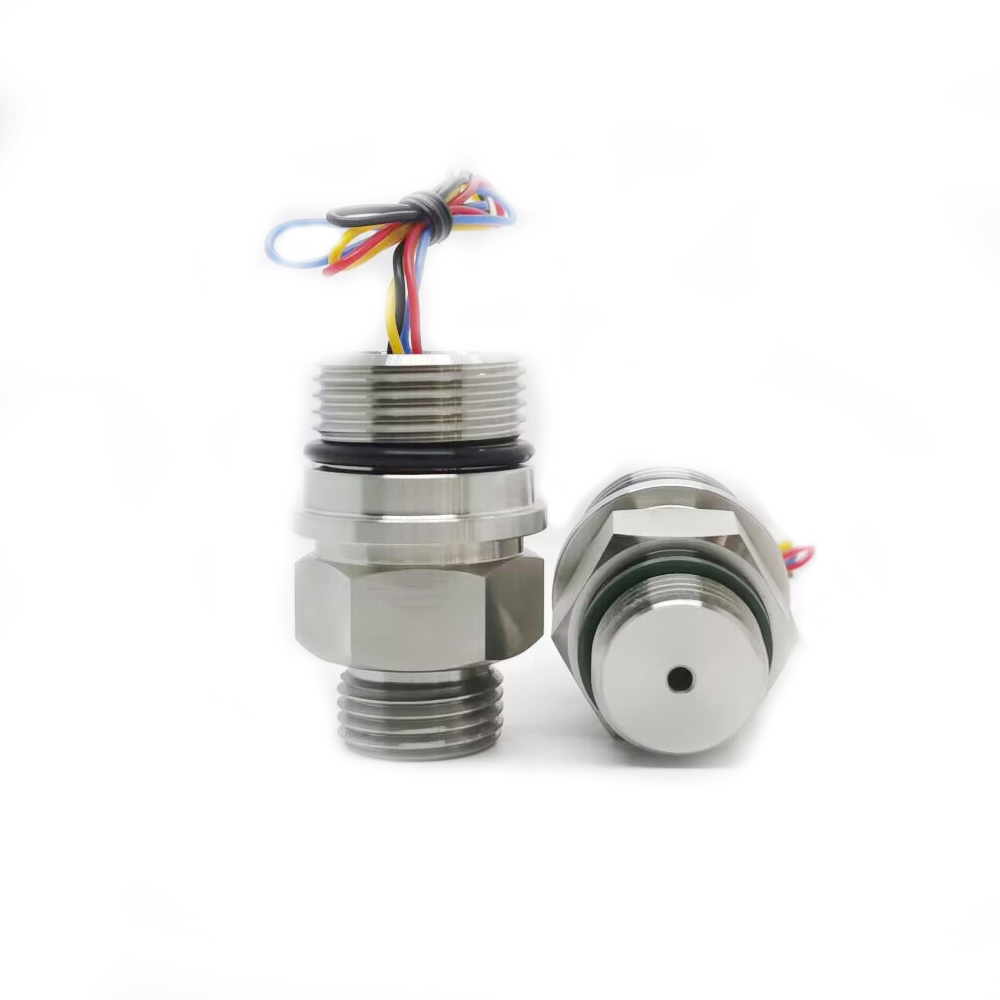

    XDB102-7 Piezoresistive Welded Pressure Sensor

    XDB102-7 series Piezoresistive pressure sensor is a sensor encapsulating the isolation film sensor core in the stainless steel shell, with SS 316L diaphragm and stainless steel shell and interface. It has good media compatibility, reliable and stableperformance with G1/2 or M20*1.5 external thread. The back-end interface is M27 * 2 external thread, which is convenient for customers to directly install and use. XDB102-7 is suitable for a variety of gas, liquid medium pressure measurements. It can be widely used in petroleum, chemical, marine, hydraulic systems and other industries process control and measurement

  • XDB102-2 Flush Diaphragm Pressure Sensor

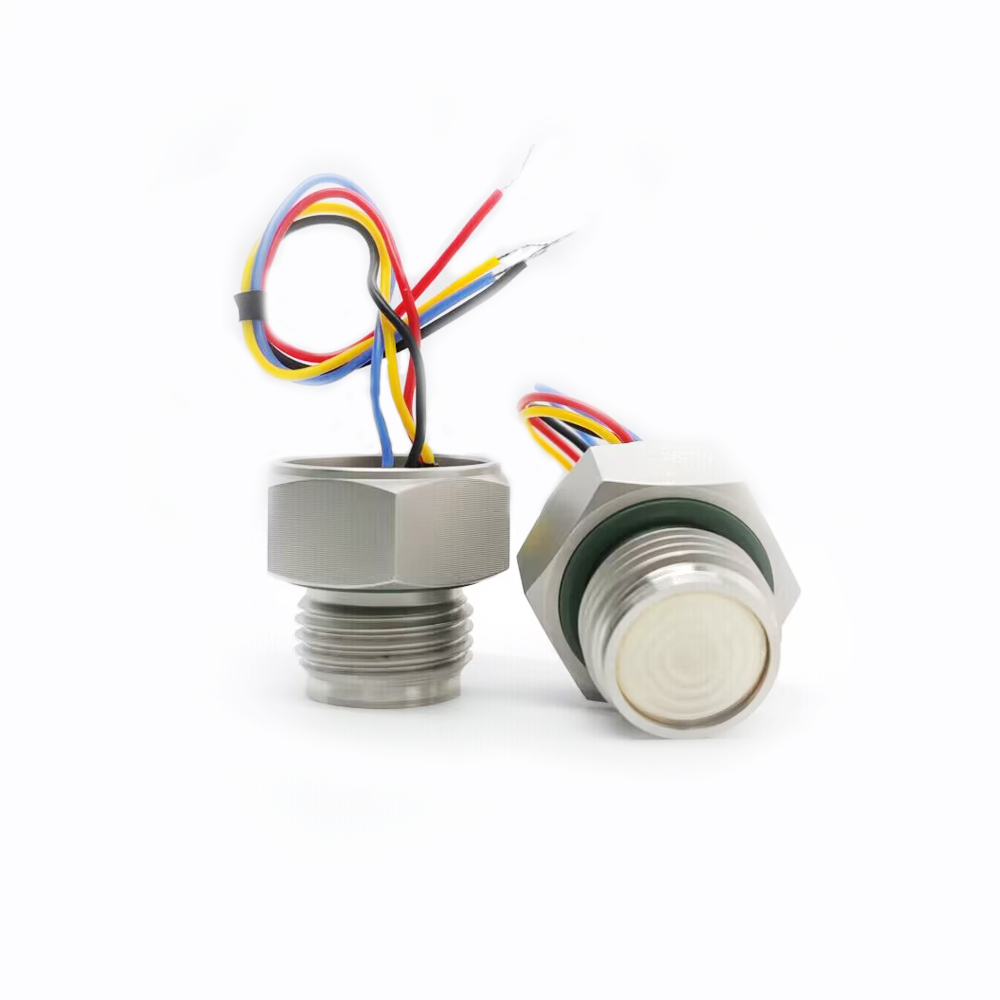

    XDB102-2 Flush Diaphragm Pressure Sensor

    XDB102-2(A) series flush diaphragm pressure sensors adopt MEMS silicon die, and combined with our company’s unique design and production process. The production of each product has adopted strict aging, screening and testing processes, to ensure excellent quality and high reliability, and to provide high-quality products for the long-term use of customers.

    The product uses flush membrane thread installation structure, easy to clean, high reliability, suitable for food, hygiene or viscous medium pressure measurement.

  • XDB102-4 Diffused Silicon Pressure Sensor

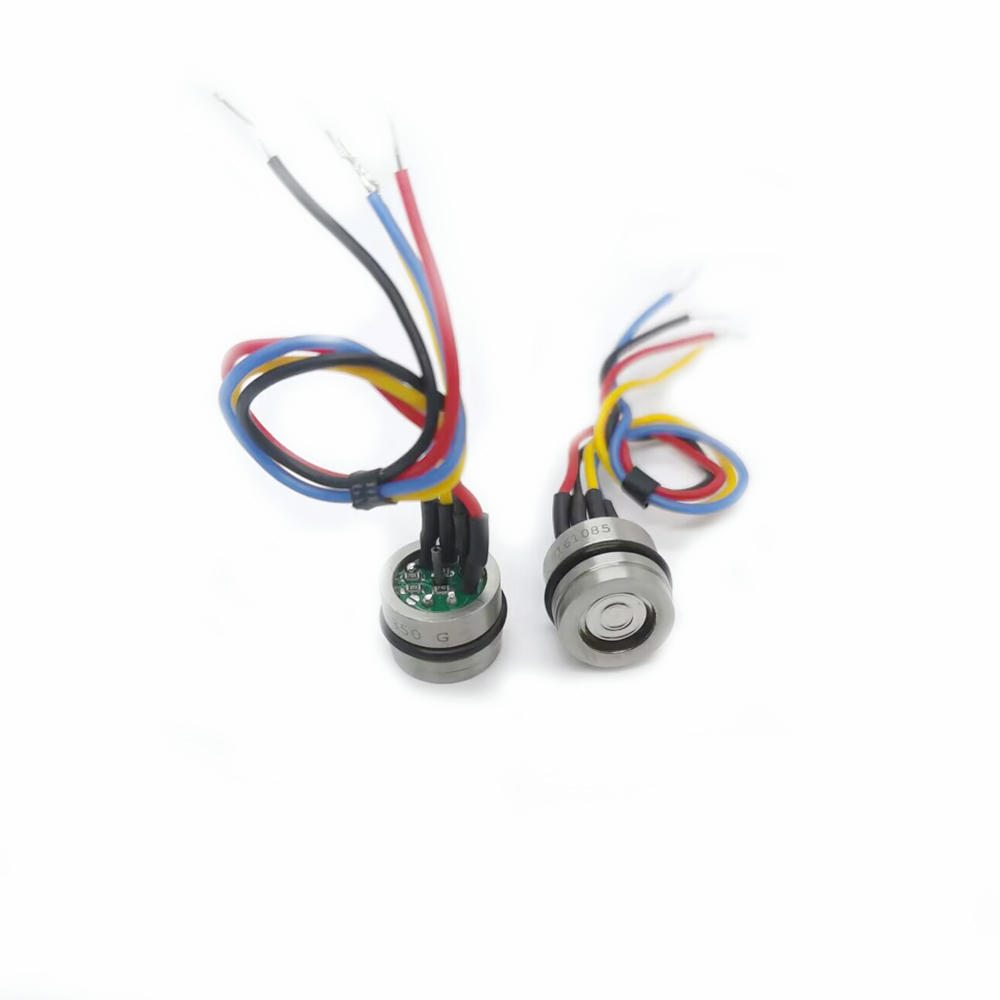

    XDB102-4 Diffused Silicon Pressure Sensor

    XDB102-4 series diffused silicon pressure sensor core is an isolated oil – filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.

    This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.
